Overview

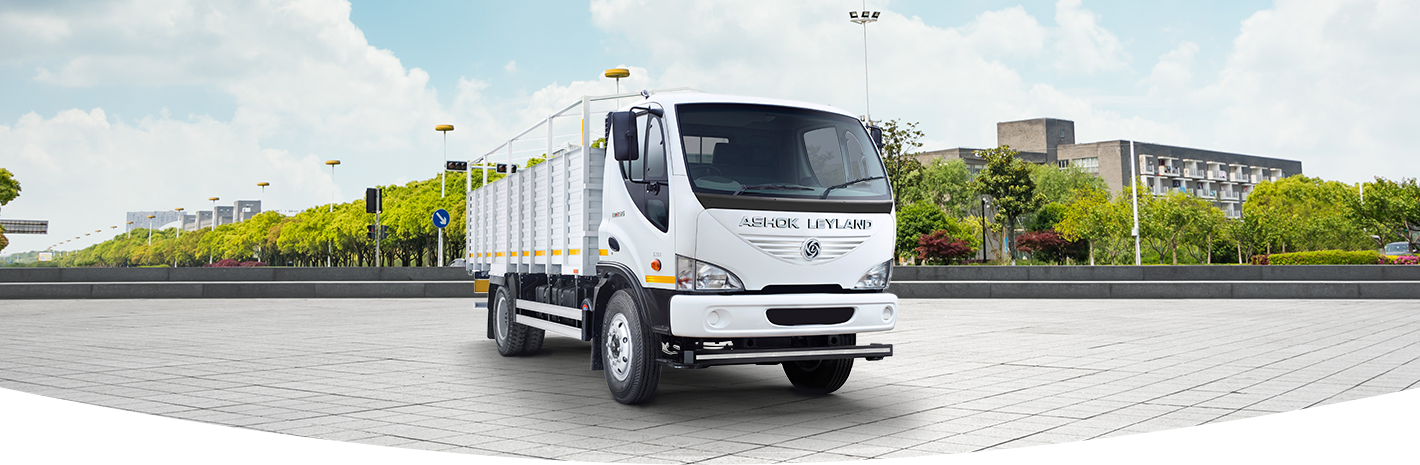

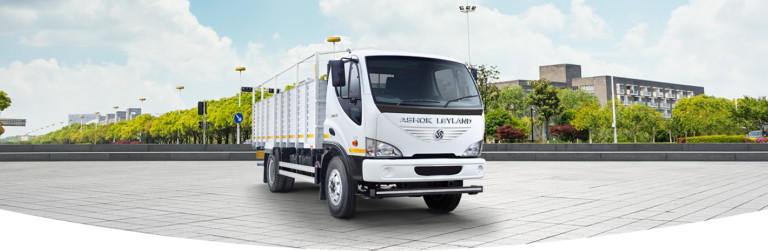

Boss 1415 HB
The Boss 1415 HB is equipped with an even more powerful engine, an overdrive gearbox and best-in-class turning radius. Your 14-ton Boss delivers on time, every time. A marvel of aesthetic engineering, combining form and function to create the ultimate ICV. The perfect balance between payload and performance, the Boss 1415 HB specially designed for higher payloads and is the ideal fit for applications parcel and logistics, e-commerce, fruits / vegetables, poultry, white goods, FMCG, auto parts, industrial goods beverages.
Features
Performance Like a Boss:
- Proven 110 kW H4 engine with i-Gen6 technology
- Superior cable shift mechanism for better driving comfort
- Parabolic suspension in front for superior ride comfort
- Radial / tubeless tyres
- 330 mm clutch
World class cabin:
- Sleeping provision in day cab
- Music system
- Adequate ventilation
- Pedestrian view
- Tilt and telescopic steering wheel
- Projected metallic bumper
- Clear headlamps
i-Gen6 advantage
- Taking the proven iEGR technology up a notch, we are introducing i-Gen6, the Innovative, Intelligent and Indian engine technology, which enhances the engine performance and durability further.
- With lower DEF consumption and compact design, iGen-6 lowers the cost of operation per ton-km, offering increased payload and low maintenance.
- he unique Mid-NOx strategy ensures overall lower cost of ownership as compared to competition.
ADDA – Advanced Digital Driver Assist
- The new Boss now comes equipped with the Advanced Digital Driver Assist (ADDA) that helps the drivers improve their driving efficiency, performance and safety.
- Gear Shift Advisory System (GSAS) indicates to the driver the correct time to shift up / down the gear.
- The instrument cluster shows instantaneous fuel economy and distance to empty.
- Reverse Park Alert Systems (RPAS) assists in reverse driving and parking and alerts the driver with a large beep.
- Auto exhaust brake improves service brakes’ life and reliability by activating automatic exhaust braking during downhill operation.
Technical Specifications
Boss 1415 HB
Cabin | Boss Day |
Engine type | H series BS-VI – 4 cylinder CRS with i-Gen6 Technology 150 H |
Maximum power | 110 kW @ 2400 rpm |
Maximum torque | 450 Nm @ 1250-2000 rpm |
Clutch | 330 mm dia – single plate, dry type with clutch booster |
Gearbox type | 6 speed synchromesh ODGB – FGR 6.93:1, Cable CSO system |
Propeller shaft | Heavy Duty Monotron Propeller Shaft |
Rear axle | Fully floating single speed rear axle , Hypoid , RAR 5.71:1 |
Front axle | Forged I section – Reverse Elliot type |
Steering | Integral power Steering |
Frame | 204 mm X 62 mm X 7 mm |
Front suspension | Parabolic leaf springs, shock absorbers with ARB |
Rear suspension | Semi-elliptical suspension |
Brakes | Full air dual line , Parking brakes on rear wheels only |
Fuel tank | 105 L / 208 L cross linked polymer tank |
DEF tank | 24 L capacity |
Electricals | 12 V, 120 AH, Alternator – 90 A |
Tyre | 8.25R20 16 PR |
GVW | 14050 kg |
Wheel base | 3400 mm| 3900 mm| 4500 mm| 4900 mm| 5200 mm |
Loading span | 4.3 m| 5.1 m| 6.1 m| 6.7 m| 7.3 m |
