Overview

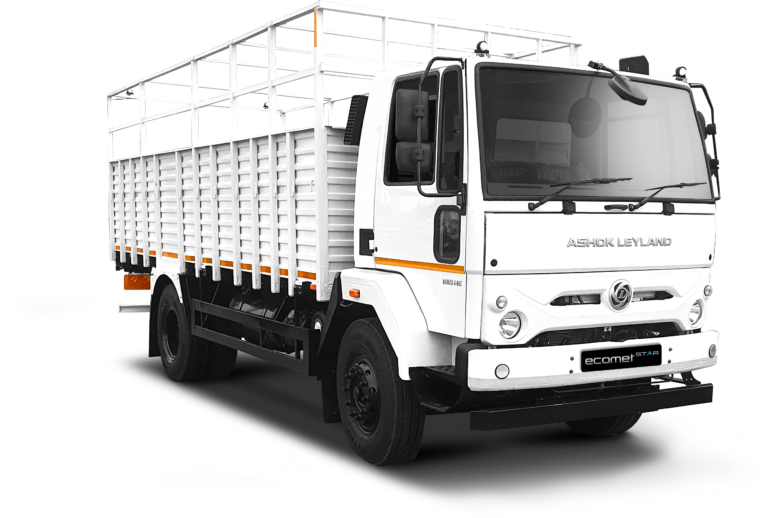

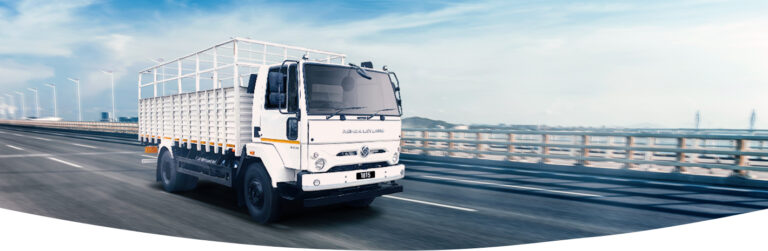

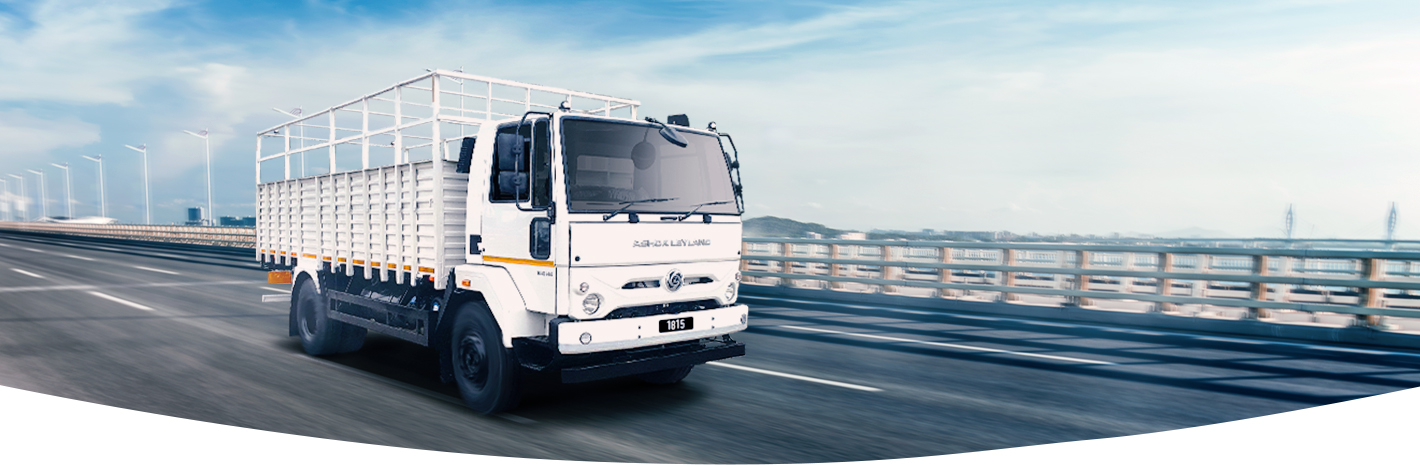

The new 18-ton Ecomet is engineered to carry heavy loads with ease, to lower maintenance cost and to giver higher savings per trip. For decades, Ashok Leyland has sharpened its ICV offering to create the most practical, most utilitarian vehicle in the commercial vehicle business – the truck that carries more – the Ecomet. The new ecomet is best suited for applications like fruits / vegetables, market load, food grains, white goods, POL tanker, cement, LPG cylinder and industrial goods
Features
Product:
- 17ft loading capacity introduced with option of Day and Sleeper cabin
- 11.89T payload and 17th HSD with day cabin
- All Steel Cabin with powerful round head lamp for better night visibility
Igen6 Advantage:
- Taking the proven iEGR technology up a notch, we are introducing i-Gen6, the Innovative, Intelligent and Indian engine technology, which enhances the engine performance and durability further.
- With lower AdBlue consumption and compact design, iGen-6 lowers the cost of operation per ton-km, offering increased payload and low maintenance.
- The unique Mid-NOx strategy ensures overall lower cost of ownership as compared to competition.
Technical Specifications
Cabin | ecomet Day / Sleeper |
Engine | H-series 4 cylinder CRS with i-Gen6 |
Max power | 110 kW (150 hp) @ 2400 rpm |
Max torque | 450 Nm @ 1250-2000 rpm |
Clutch | 330 mm dia. – single plate, dry type with clutch booster |
Transmission | 6 speed synchromesh OD GB, cable CSO system |
Propeller Shaft | Heavy duty monotron propeller shaft |
Front axle | Forged I section – Reverse Elliot type |
Rear axle | Fully floating single speed rear axle |
Steering | Integral power steering |
Frame | 208 X 76 X 7 mm – High strength material HSQ 550 |
Front suspension | Semi-elliptic multi-leaf shackle type |
Rear suspension | Semi-elliptic multi-leaf (new heavy-duty suspension) |
Brakes | Full air dual line. Parking brakes on rear wheels only |
Fuel tank | 185 L |
DEF tank | 24 L |
Electricals | Battery : 24V – 120 Ah; Alternator : 90 A |
Tyres | 295 / 90R20 |
GVW | 17,500 kg |
Wheel base | Day : 4200 mm / 4750 mm / 5200 mm; Sleeper : 4750 mm / 5200 mm |
