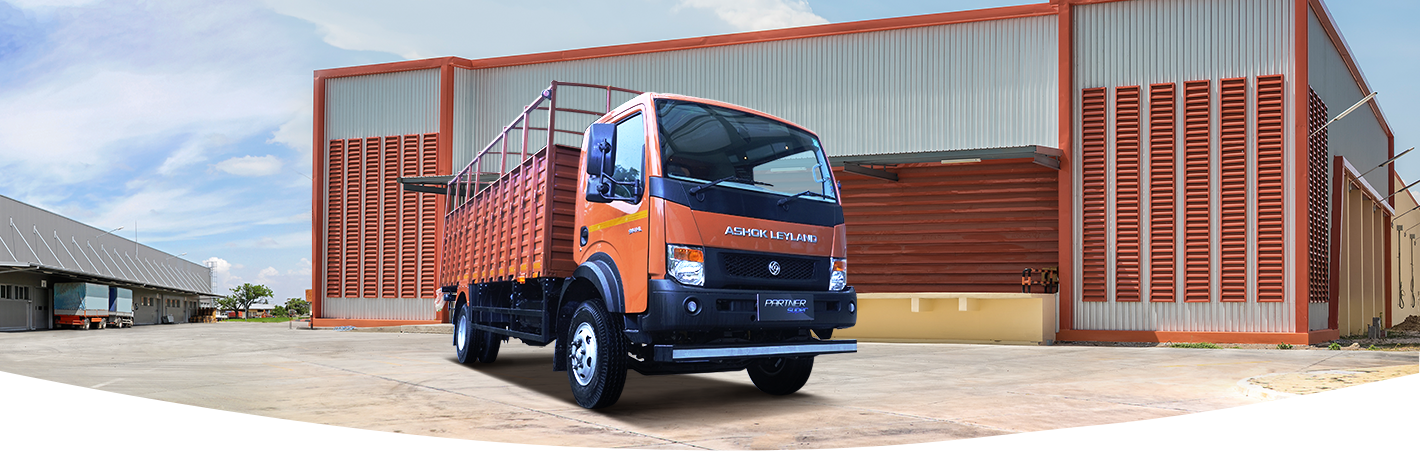

“Partner Super – your partner for super prosperity” meets the requirements for intra city movement,sub-urban and super highways with equal ease. Available with 3 models – 914, 1014& 1114 cater to the GVW nodes of 9.15T, 10.25T and 11.28T GVW respectively. Partner Super is powered by Z D30 engine with the i-Gen6 technology and the vehicle offers best-in-class power, payload, best-in-class mileage and best-in class power. The newly launched platform is designed with a contemporary tilt-able day cabin to provide superior driver comfort and has a wide range of loading span options (4.3m (14 ft.), 5.2m (17 ft.), 6.2m (20 ft.) and 6.8m (22 ft.)).
The Partner Super will address customer needs in rated load applications, like e-commerce, beverage, FMCG, whitegoods, Parcel, Fruits amongst others. It is agile and ensures better maneuverability in narrow/ congested roads.
4-point suspension
- 4-point suspension
- Tiltable cabin
- Titable & Telescopic power steering
- Modern digital cluster
- Safe and ergonomic interiors
- Factory fitted AC (optional)
- Dual Tone dashboard
- Bottle holder
- Mobile charger
- ELR seatbelt
- Lockable glove box
Super aggregates
- 6 speed overdrive gearbox
- Heavy duty axle
- Front parabolic suspension with shock absorbers
- Rear heavy-duty semi-elliptical suspension with helper springs
- 310 mm clutch with unilever type booster
- Monotron propeller shaft with rubber mounted center bearing
- High strength and long life 6 mm thick frame joggled type
- Cable type shift mechanism
| Engine | ZD30 BS VI Diesel, CRS, direct Injection, water cooled | |||
| Maximum power | 104 kW (140 hp) @ 2750 rpm | |||
| Maximum torque | 360 Nm @ 1350-2750 rpm | |||
| Clutch | 310 mm dia – Diaphragm, Push type, Hydraulic actuated | |||
| Gear box type | 6 speed Overdrive gearbox; CSO cable Type | |||
| Propeller shaft | Monotron Propeller shaft | |||
| Front axle | Forged I-section – Reverse Elliot type | |||
| Rear axle | Fully floating single speed rear Axle, RAR: 4.56 | |||
| Steering | Hydraulic assisted Power steering | |||
| Frame (mm) | 202 X 60 X 6 – Joggled frame | |||
| Front Suspension | Parabolic springs with shock absorber | |||
| Rear Suspension | Semi-elliptic multileaf with helper springs | |||
| Brakes | Full air – dual line brakes, Parking brakes on rear only | |||
| Electricals | Battery : 12V – 75Ah ; Alternator : 70 A | |||
| Tyres | 7.5X16-16 PR ; Optional : 7.5R16-16 PR | |||
| Fuel tank capacity (L) | 90 | 185 | |||
| DEF tank Capacity (L) | 20 | |||
| Cabin | Tiltable Day Cab | |||
| GVW (kg) | 9150 | |||
| Wheelbase (mm) | 3425 | 3955 | 4500 | 4900 |
| Loading Span (m) | 4.3 (14 ft) | 5.2 (17 ft) | 6.2 (20 ft) | 6.8 (22 ft) |
| Turning Circle Dia (m) | 12.5 | 14.5 | 16.5 | 17.5 |
| Loadbody length (inner-mm) | 4267 | 5173 | 6096 | 6706 |
| Loading Body width (inner-mm) | 2074 | |||
| Loadbody height (inner-mm) | 1614 | |||
